SIZE | LOAD INDEX/ SPEED CODE | SECTION WIDTH (MM) | DIAMETER (MM) | STATICAL RADIUS (MM) | ROLLING CIRC. (MM) | RIMS | MARKING | REGULATION EU 2020/740 - LABEL PARAMETERS | |||
---|---|---|---|---|---|---|---|---|---|---|---|
295/80 R 22.5 | 152/148 M | 306 | 1056 | 491 | 3219 | 8.25-9.00 | M+S | D | B | B 74dB |
SIZE | 295/80 R 22.5 | |
LOAD INDEX/ SPEED CODE |
152/148 M | |
SECTION WIDTH (MM) |
306 | |
DIAMETER (MM) |
1056 | |
STATICAL RADIUS (MM) |
491 | |
ROLLING CIRC. (MM) |
3219 | |
RIMS | 8.25-9.00 | |
MARKING | M+S | |
REGULATION EU 2020/740 - LABEL PARAMETERS | D | |
B | ||
B 74dB | ||

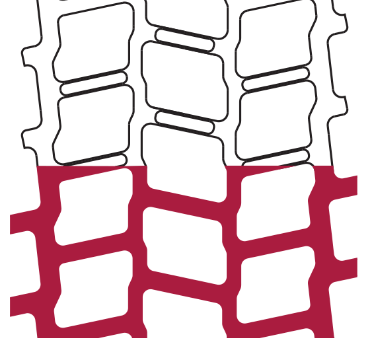

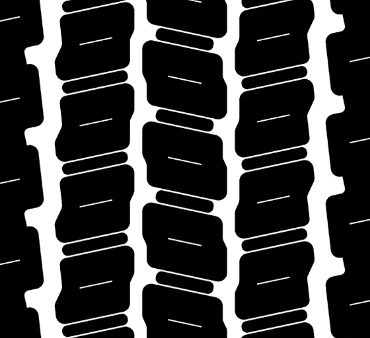

P. MAX = 2mm — W.MAX = 8mm
W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth
