SIZE | LOAD INDEX/ SPEED CODE | SECTION WIDTH (MM) | DIAMETER (MM) | STATICAL RADIUS (MM) | ROLLING CIRC. (MM) | RIMS | MARKING | REGULATION EU 2020/740 - LABEL PARAMETERS | |||
---|---|---|---|---|---|---|---|---|---|---|---|
295/80 R 22.5 | 154/149 M | 306 | 1050 | 489 | 3203 | 8.25-9.00 | M+S | C | B | A 71dB | |
315/80 R 22.5 | 156/150 L (154/150 M) | 316 | 1070 | 498 | 3264 | 9.00-9.75 | M+S | C | B | A 71dB |
SIZE | 295/80 R 22.5 | 315/80 R 22.5 | |
LOAD INDEX/ SPEED CODE |
154/149 M | 156/150 L (154/150 M) | |
SECTION WIDTH (MM) |
306 | 316 | |
DIAMETER (MM) |
1050 | 1070 | |
STATICAL RADIUS (MM) |
489 | 498 | |
ROLLING CIRC. (MM) |
3203 | 3264 | |
RIMS | 8.25-9.00 | 9.00-9.75 | |
MARKING | M+S | M+S | |
REGULATION EU 2020/740 - LABEL PARAMETERS | C | C | |
B | B | ||
A 71dB | A 71dB | ||

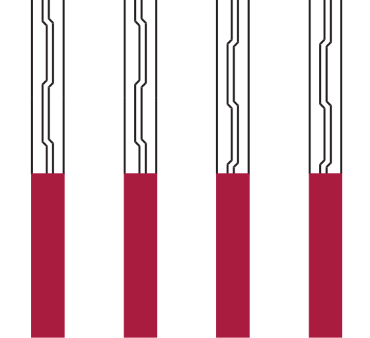

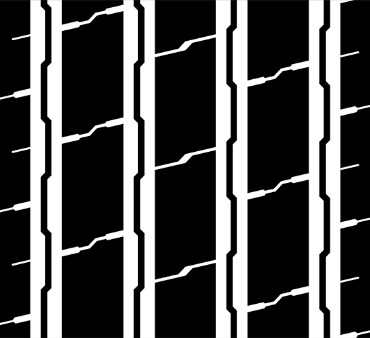

P. MAX = 2mm — W.MAX = 8mm
W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth
