SIZE | LOAD INDEX/ SPEED CODE | SECTION WIDTH (MM) | DIAMETER (MM) | STATICAL RADIUS (MM) | ROLLING CIRC. (MM) | RIMS | MARKING | REGULATION EU 2020/740 - LABEL PARAMETERS | |||
---|---|---|---|---|---|---|---|---|---|---|---|
13 R 22.5 | 156/150 K (154/150 L) | 316 | 1117 | 518 | 3407 | 9.00-9.75 | M+S | D | A | A 71dB | |
315/80 R 22.5 | 156/150 K | 316 | 1076 | 500 | 3282 | 9.00-9.75 | M+S | C | A | A 72dB |
SIZE | 13 R 22.5 | 315/80 R 22.5 | |
LOAD INDEX/ SPEED CODE |
156/150 K (154/150 L) | 156/150 K | |
SECTION WIDTH (MM) |
316 | 316 | |
DIAMETER (MM) |
1117 | 1076 | |
STATICAL RADIUS (MM) |
518 | 500 | |
ROLLING CIRC. (MM) |
3407 | 3282 | |
RIMS | 9.00-9.75 | 9.00-9.75 | |
MARKING | M+S | M+S | |
REGULATION EU 2020/740 - LABEL PARAMETERS | D | C | |
A | A | ||
A 71dB | A 72dB | ||

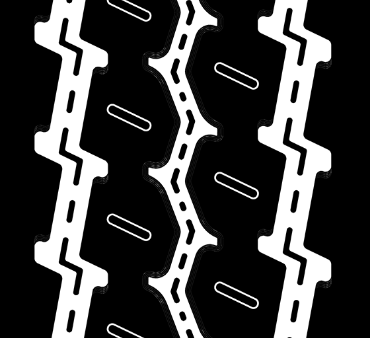

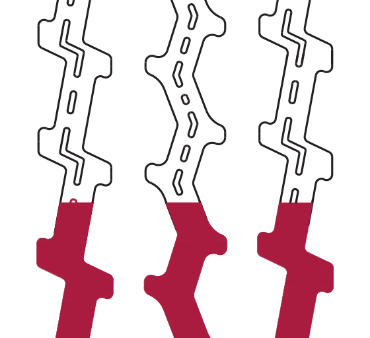

P. MAX = 2mm — W.MAX = 8mm
W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth
