Anteo / Tyres / PRO-D

ON ROAD

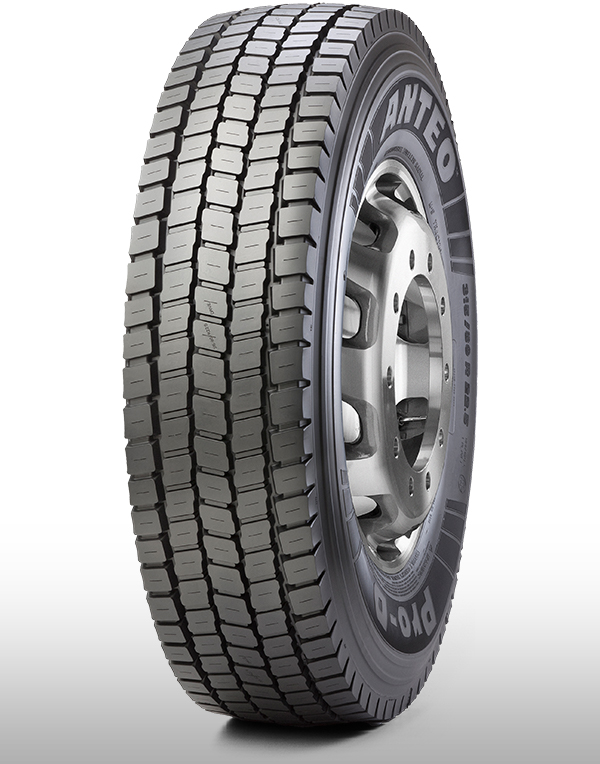

PRO-D

PRO-D

ice.png m_s.png
Designed for use on drive axles on long-distance and regional haul trucks in varying weather conditions. It offers a successful combination of traction and regular wear.
  • Traction
    Zig-zag shaped grooves, bumpers in the transversal grooves and tie-bar on the shoulders enhance traction and even wear.
  • Wet and snow grip performance
    Functional sipes enhance wet and snow grip performance.
  • Regular wear

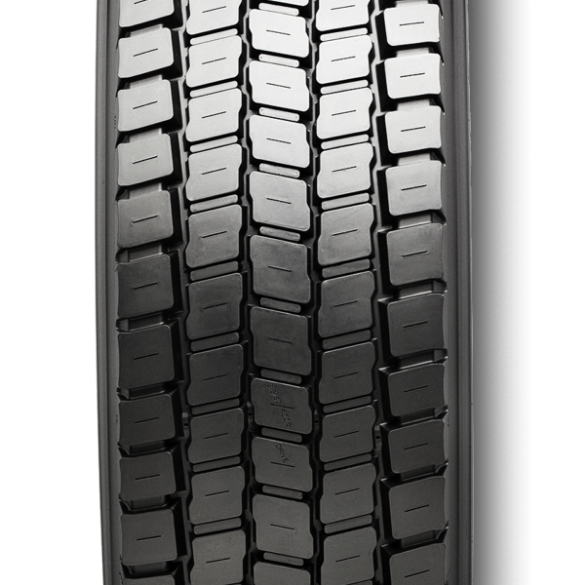

    Optimized tread block design promotes regular wear and tear resistance.

SIZE RANGE

SIZE LOAD INDEX/
SPEED CODE		 SECTION
WIDTH
(MM)		 DIAMETER
(MM)		 STATICAL
RADIUS
(MM)		 ROLLING CIRC.
(MM)		 RIMS MARKING REGULATION EU 2020/740 - LABEL PARAMETERS
= Fuel efficiency class = Wet grip class = External rolling noise class = Snow grip / 3PMSF marking
215/75 R 17.5 126/124 M 216 775 363 2364 6.00-6.75 M+S D B A 69dB
235/75 R 17.5 132/130 M 236 804 375 2452 6.75-7.50 M+S E A A 73dB
245/70 R 17.5 136/134 M 244 808 372 2464 6.75-7.50 M+S E B A 73dB
265/70 R 19.5 140/138 M 267 865 400 2637 6.75-7.50-8.25 M+S D B B 74dB
285/70 R 19.5 146/144 L 290 892 411 2721 7.50-8.25-9.00 M+S D B B 74dB
295/80 R 22.5 152/148 M 306 1056 491 3219 8.25-9.00 M+S D B B 74dB
315/70 R 22.5 154/150 L (152/148 M) 315 1012 468 3087 9.00-9.75 M+S D A B 74dB
156/150 L (154/150 M) 154/150 L (152/148 M) 316 1078 501 3288 9.00-9.75 M+S D B B 72dB
SIZE 215/75 R 17.5 235/75 R 17.5 245/70 R 17.5 265/70 R 19.5 285/70 R 19.5 295/80 R 22.5 315/70 R 22.5 156/150 L (154/150 M)
LOAD INDEX/
SPEED CODE		 126/124 M 132/130 M 136/134 M 140/138 M 146/144 L 152/148 M 154/150 L (152/148 M) 154/150 L (152/148 M)
SECTION
WIDTH
(MM)		 216 236 244 267 290 306 315 316
DIAMETER
(MM)		 775 804 808 865 892 1056 1012 1078
STATICAL
RADIUS
(MM)		 363 375 372 400 411 491 468 501
ROLLING CIRC.
(MM)		 2364 2452 2464 2637 2721 3219 3087 3288
RIMS 6.00-6.75 6.75-7.50 6.75-7.50 6.75-7.50-8.25 7.50-8.25-9.00 8.25-9.00 9.00-9.75 9.00-9.75
MARKING M+S M+S M+S M+S M+S M+S M+S M+S
REGULATION EU 2020/740 - LABEL PARAMETERS = Fuel efficiency class D E E D D D D D
= Wet grip class B A B B B B A B
= External rolling noise class A 69dB A 73dB A 73dB B 74dB B 74dB B 74dB B 74dB B 72dB
= Snow grip / 3PMSF marking
   = Fuel efficiency class
   = Wet grip class
   = External rolling noise class
   = Snow grip / 3PMSF marking
Rim underlined is measuring rim

RECOMMENDED FITMENT

furgone_centinato_carico_posteriore_new.png furgone_centinato_scarico_posteriore.png motrice_posteriore_new.png

DOWNLOAD

BROCHURE
3.69 Mb

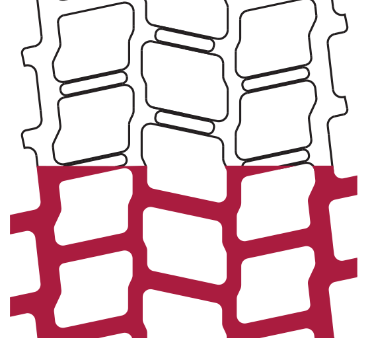

REGROOVING

PRO-D

P. MAX = 2mm — W.MAX = 8mm

W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth

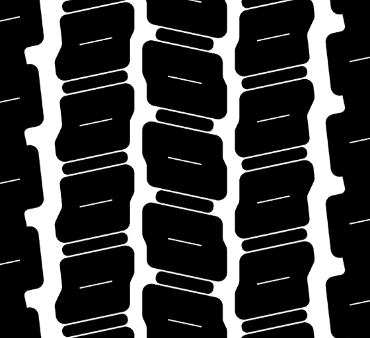

NEW TREAD
PRO-D
WORN TREAD
PRO-D
REGROOVED
