SIZE | LOAD INDEX/ SPEED CODE | SECTION WIDTH (MM) | DIAMETER (MM) | STATICAL RADIUS (MM) | ROLLING CIRC. (MM) | RIMS | MARKING | REGULATION EU 2020/740 - LABEL PARAMETERS | |||
---|---|---|---|---|---|---|---|---|---|---|---|
275/70 R 22.5 | 150/148 J (152/148 E) | 285 | 965 | 453 | 2943 | 7.50-8.25 | M+S | C | B | A 71dB |
SIZE | 275/70 R 22.5 | |
LOAD INDEX/ SPEED CODE |
150/148 J (152/148 E) | |
SECTION WIDTH (MM) |
285 | |
DIAMETER (MM) |
965 | |
STATICAL RADIUS (MM) |
453 | |
ROLLING CIRC. (MM) |
2943 | |
RIMS | 7.50-8.25 | |
MARKING | M+S | |
REGULATION EU 2020/740 - LABEL PARAMETERS | C | |
B | ||
A 71dB | ||

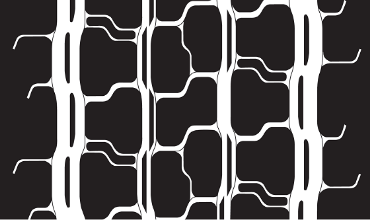

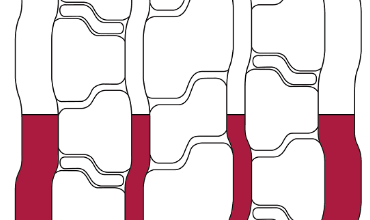

P. MAX = 2mm — W.MAX = 8mm
W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth
